Light bean alarm (CB6427E)

Details
Written by: Newton C. Braga

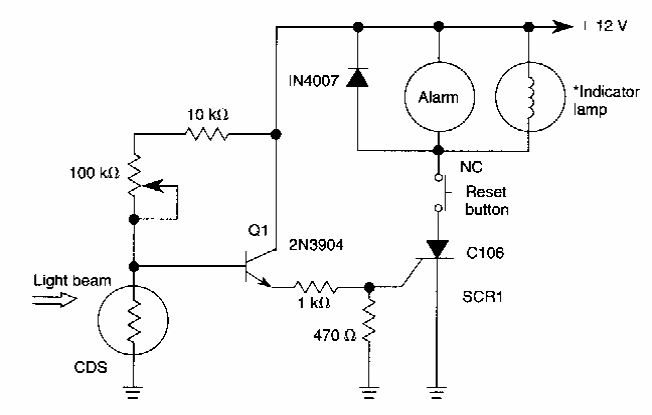

    Found in a 1990s US publication, this alarm circuit detects when a light beam is interrupted. Optical resources may be used for the sensor and instead of the alarm a relay may be used.




| Clique na imagem para ampliar |
