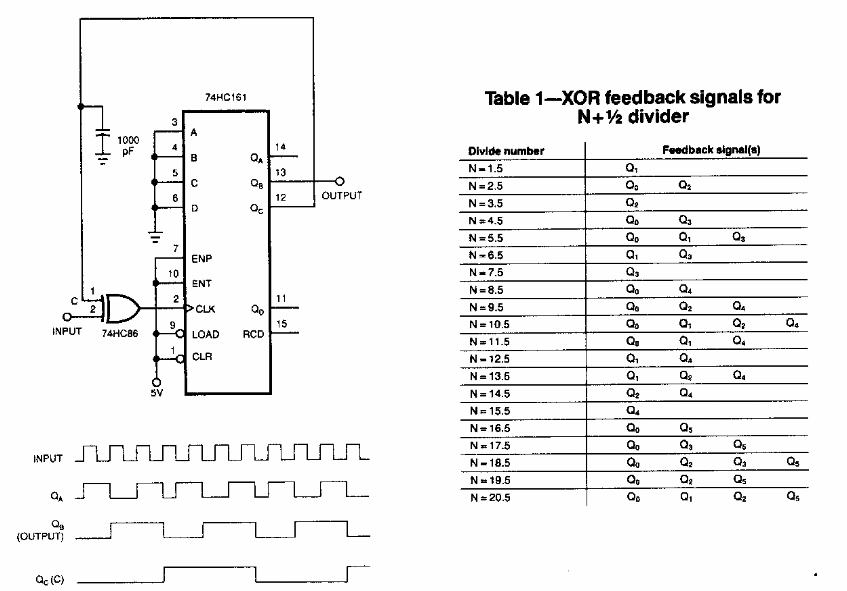

This interesting 80's EDN circuit divides the input pulse frequency by a number given by n (integer) + 1/2. We can then get divisions by 1.5, 2.5, 3.5, etc. according to the table given next to the diagram. The circuit is TTL and can function as a shield.
