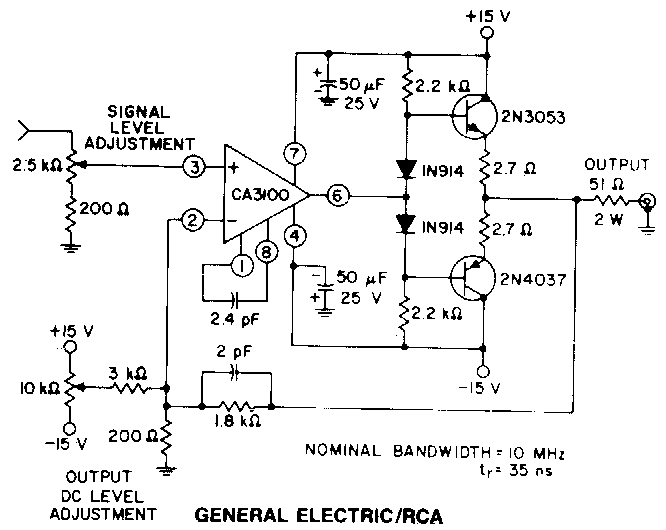

50 ohm line driver 2 (CB6222E)

Details: Written by: Newton C. Braga

This circuit was suggested by General Electric / RCA in a 1980s documentation. The components are of the time and the circuit must be powered by symmetrical source.
