Siren (CB7081E)

Details
Written by: Newton C. Braga

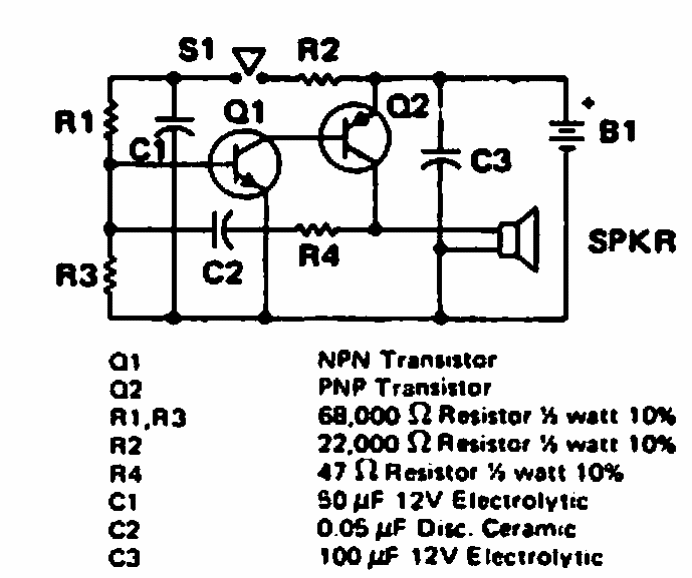

    This well-known circuit version of the siren was obtained in a Colectro Handbook from the 70s. The transistors are of general use, with Q2 being a BD136 for greater power with power from 6 to 12 V.
