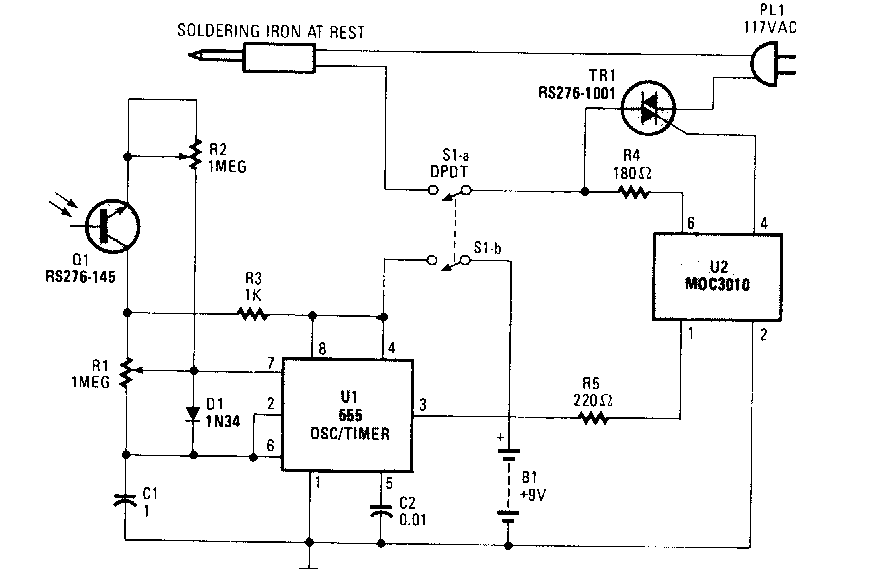

This circuit was found in 80's Popular Electronics. The circuit uses an infrared-sensitive phototransistor to monitor the heat from the tip of a soldering iron. The trigger element for the triac is a fotodiac.
| Clique na imagem para ampliar |
Infrared controlled soldering station (CB7021E)
- Details
- Written by: Newton C. Braga
