Soft start dimmer (CB7202

Details: Written by: Newton C. Braga

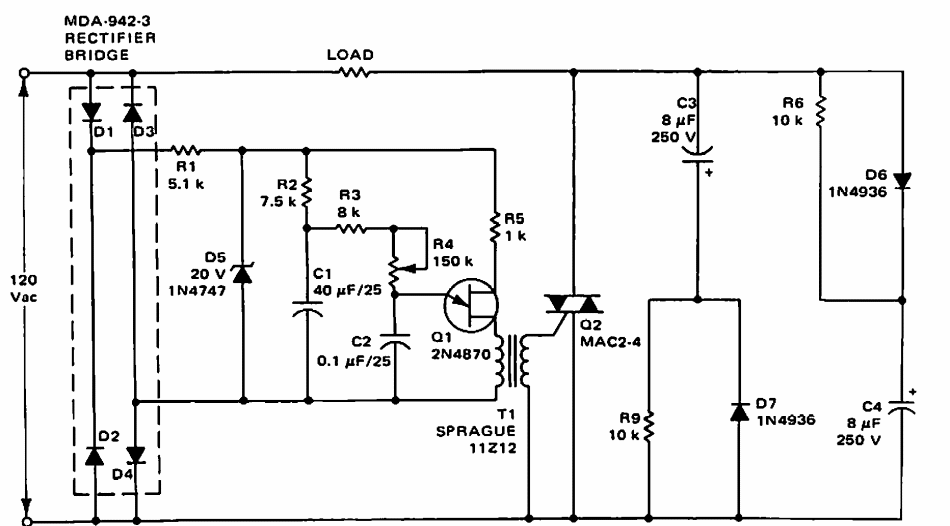

This soft start dimmer was found in a Motorola documentation from 1968. However, it can be implemented with modern equivalent components like the 2N2646 for the Unijunction.
