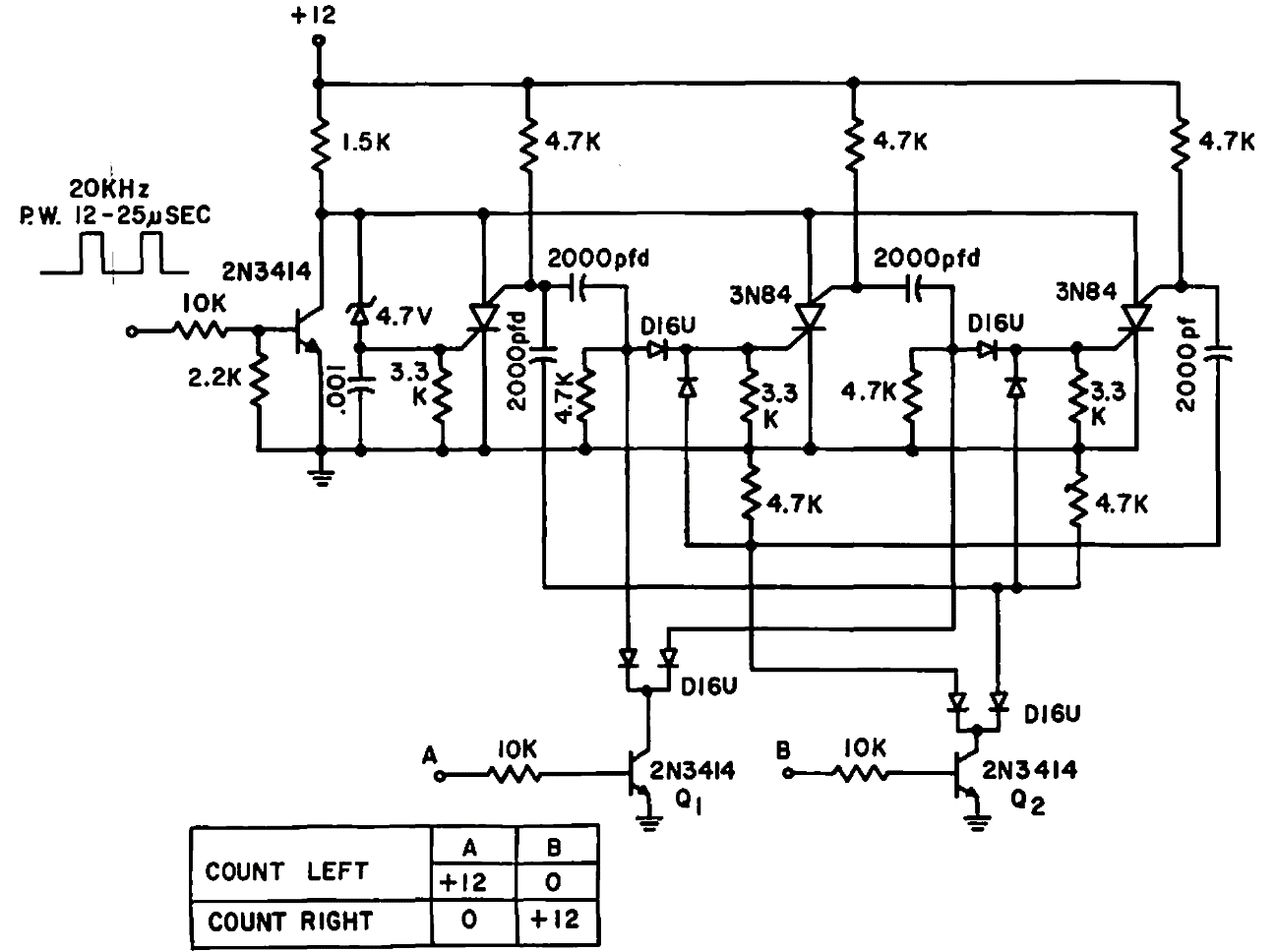

Reversible Ring Counter (CB6598E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1966 General Electric documentation. The circuit makes use of PUTs that are uncommon components today. Counting direction depends on the programming in A and B.
