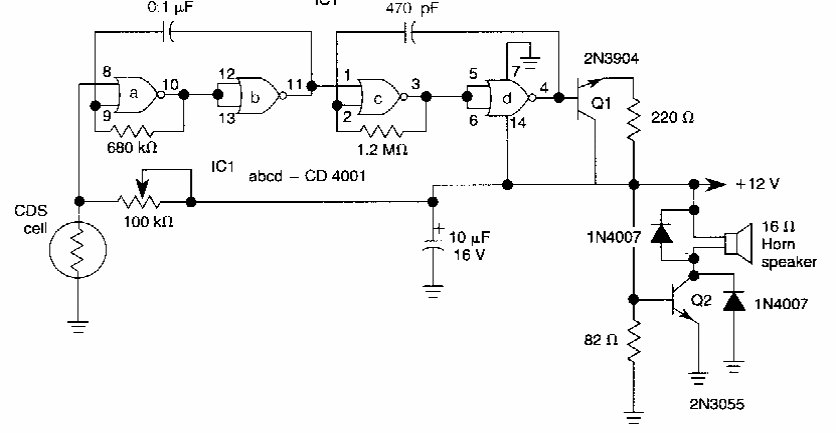

Pulsed Light Alarm (CB6439E)

This circuit provides a high intensity pulsating signal to a speaker. The circuit is from an American 90's documentation. The power supply is 12 V.

| Clique na imagem para ampliar |

Current limiter (CB8355E)
This circuit was found in a 1965 Electronic Design. Transistor Q2 must be load dependent. The circuit...
Multiplexed AD Converter (CB9023E)
This 8-channel converter was found in a 1970s American documentation. The integrated circuits used are...
20 to 20 kHz generator (CB9240E)
This rectangular signal generator was found in an Electronics World of 1966. The transistors are...
