Null Detector (CB6496E)

Details
Written by: Newton C. Braga

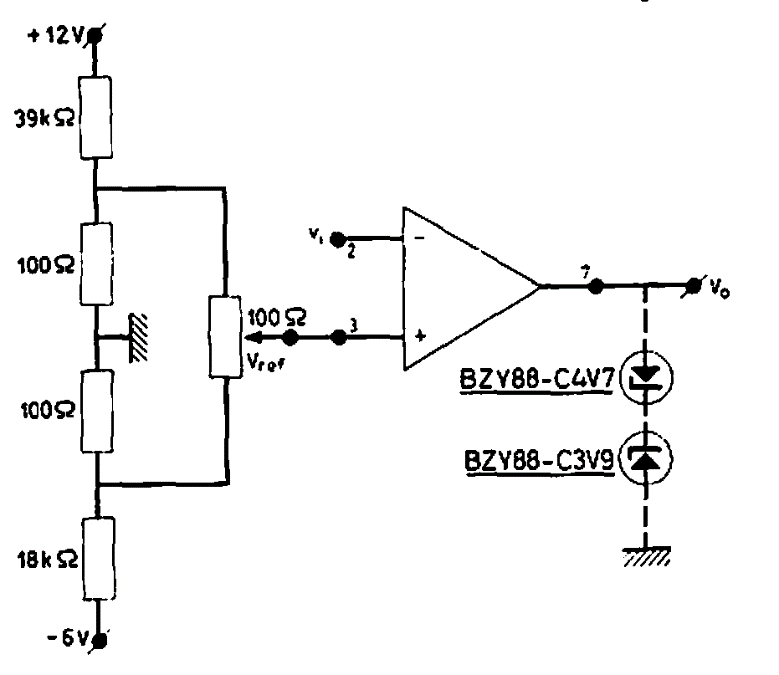

    Found in a Philips documentation from 1968, this circuit detects the trimpot set input voltage. The operational can be of almost any kind.
