Panic button (CB7077E)

Details
Written by: Newton C. Braga

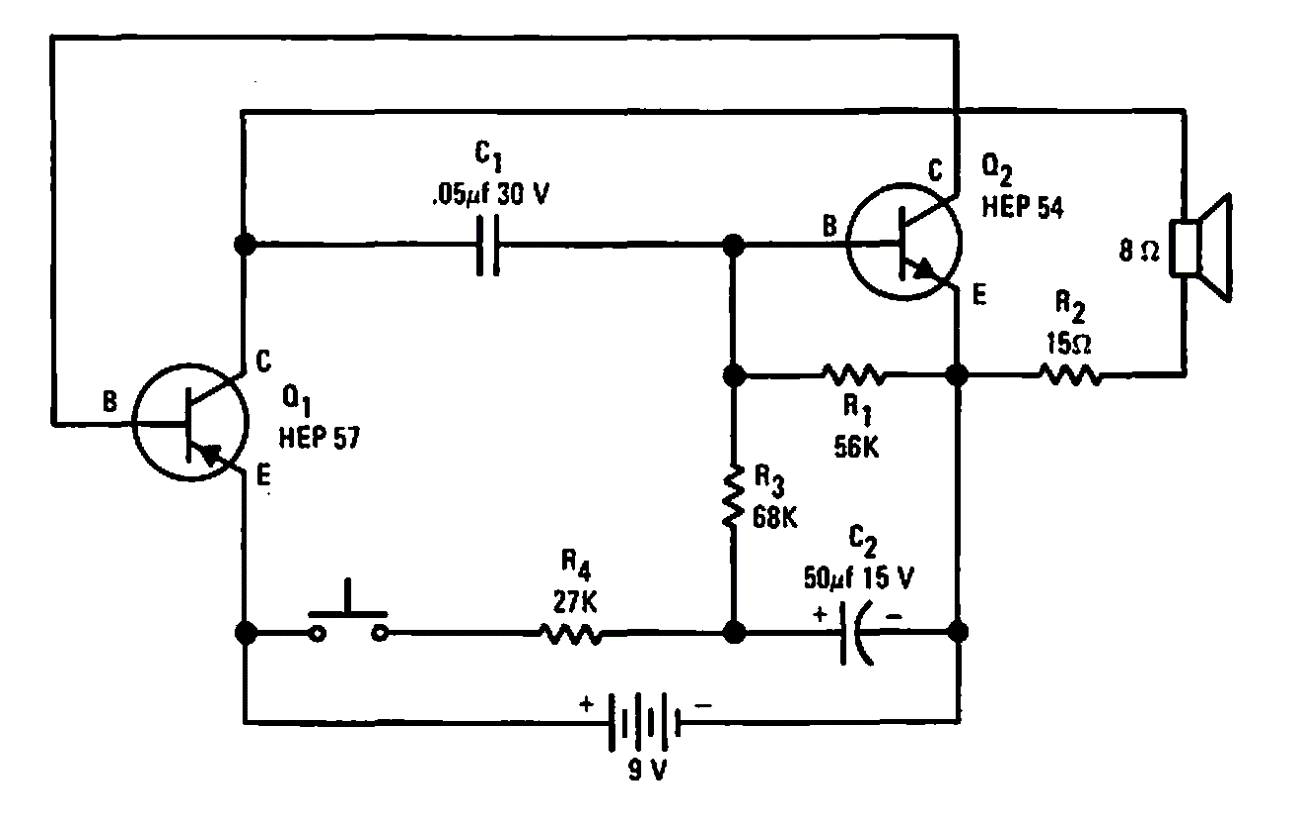

     Found in a 1968 Motorola publication, this circuit generates a high-powered audio tone when triggered. Equivalent transistors can be used.
