Automotive power control (CB7111E)

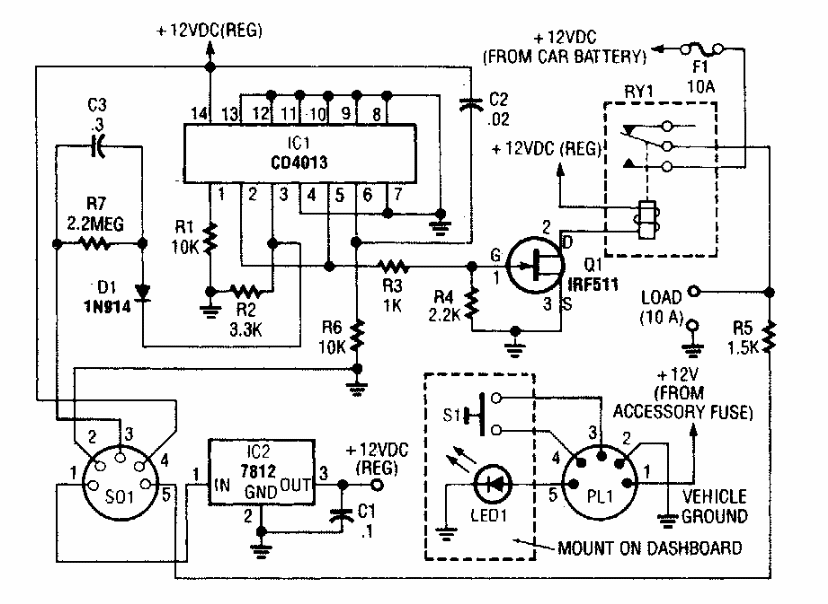

Found in an Electronics Now from the 90s, this circuit is used to control the supply of accessories in the car. Components are common today.
