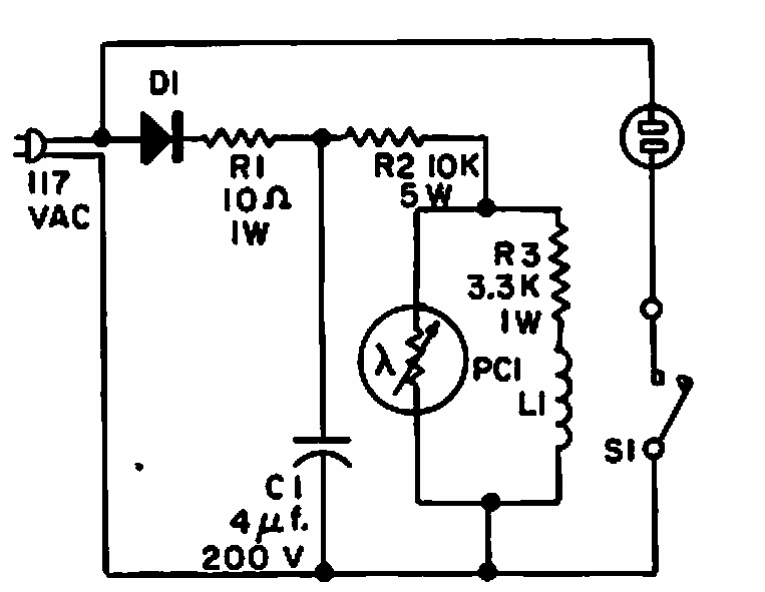

Automatic night light (CB7193E)

This circuit is from a 1965 General Electric hobby manual. The circuit can be assembled with sensitive reed relays.

| Clique na imagem para ampliar |
