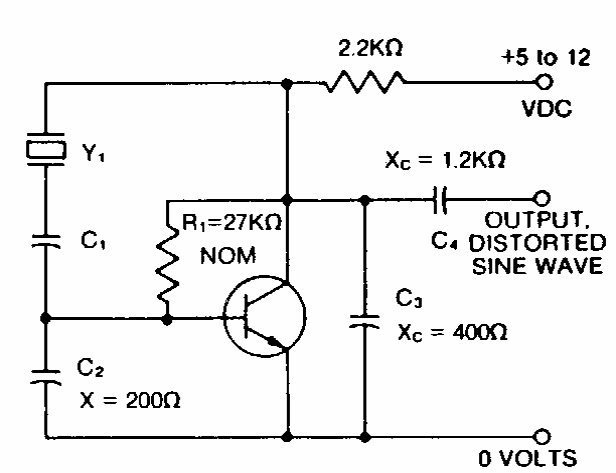

Found in an ancient American documentation, this circuit has the basic configuration of a crystal oscillator. The capacitor must have an X impedance of 200 ohm at the crystal frequency and must be calculated for this.
150 kHz to 30 MHz Oscillator (CB6512E)
- Details
- Written by: Newton C. Braga
