Alarm with series sensors (CB6417E)
- Details
- Written by: Newton C. Braga

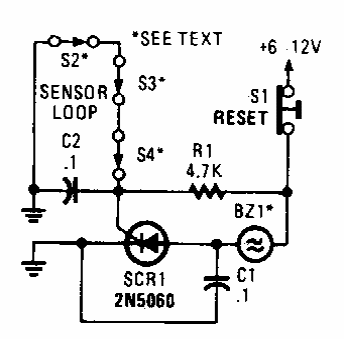

This series sensor circuit is from 1995 Popular Electronics. The circuit can use any SCR and the number of sensors is unlimited. The supply voltage depends on the load.
