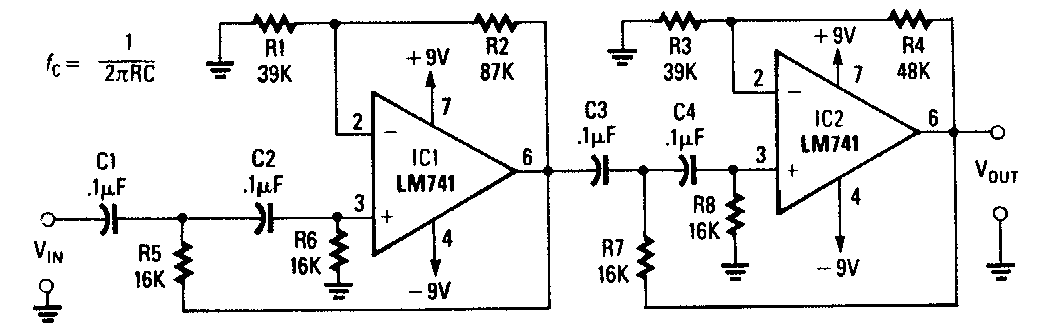

This fourth-order circuit was found on an 80's Radio Electronics. The power supply must be symmetrical and the frequency for other frequencies can be calculated by the formula next to the diagram.
| Clique na imagem para ampliar |
100 Hz High Pass Filter (CB6545E)
- Details
- Written by: Newton C. Braga
