Very Simple Theremin (CB6704E)

Details
Written by: Newton C. Braga

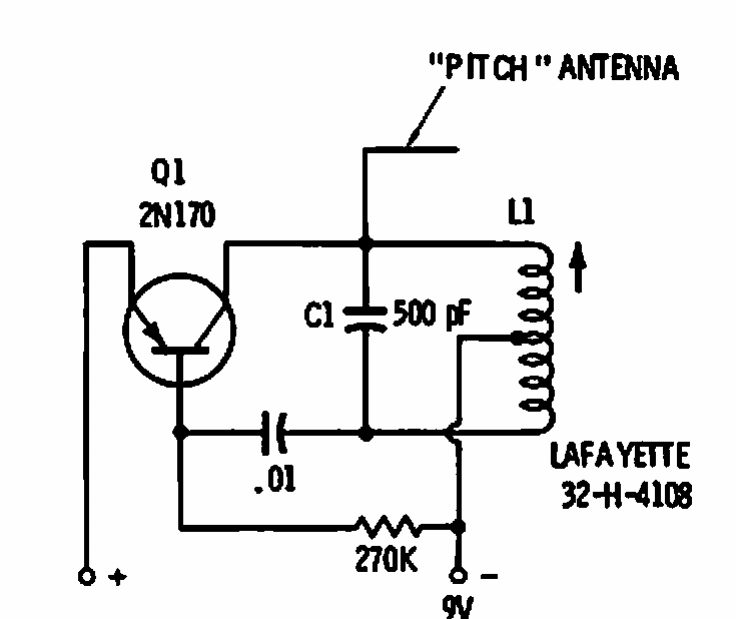

     This circuit operates with an AM radio tuned to or near 900 kHz if there is a station at this location. The coil consists of 60 + 40 turns 28 on a ferrite rod.
