Tachometer feedback control (CB7391E)

Details
Written by: Newton C. Braga

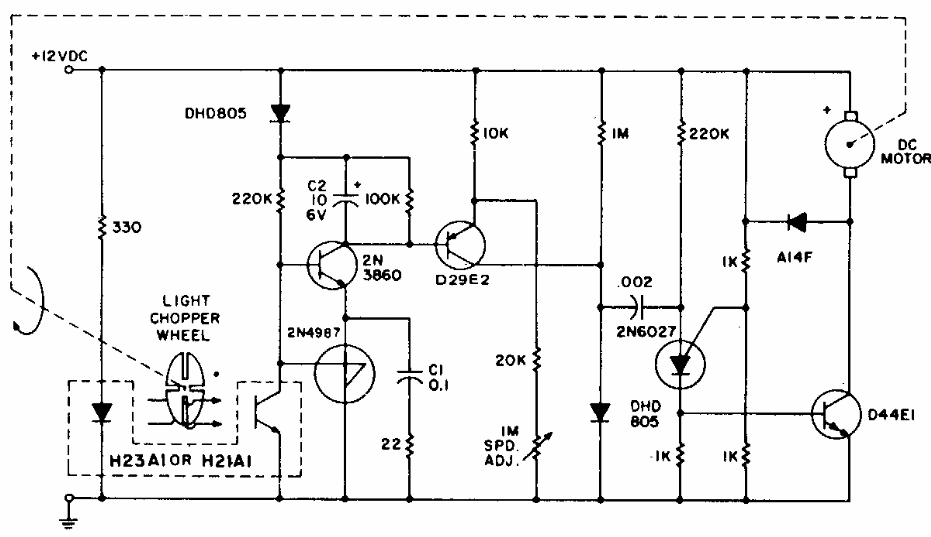

     We found this circuit in a publication by General Electric in the 1980s. The transistors and the PUT are from that time. The control is done by a tachometer based on an optical coupler.
