1 W Integrated Amplifier (CB6282E)

Details
Written by: Newton C. Braga

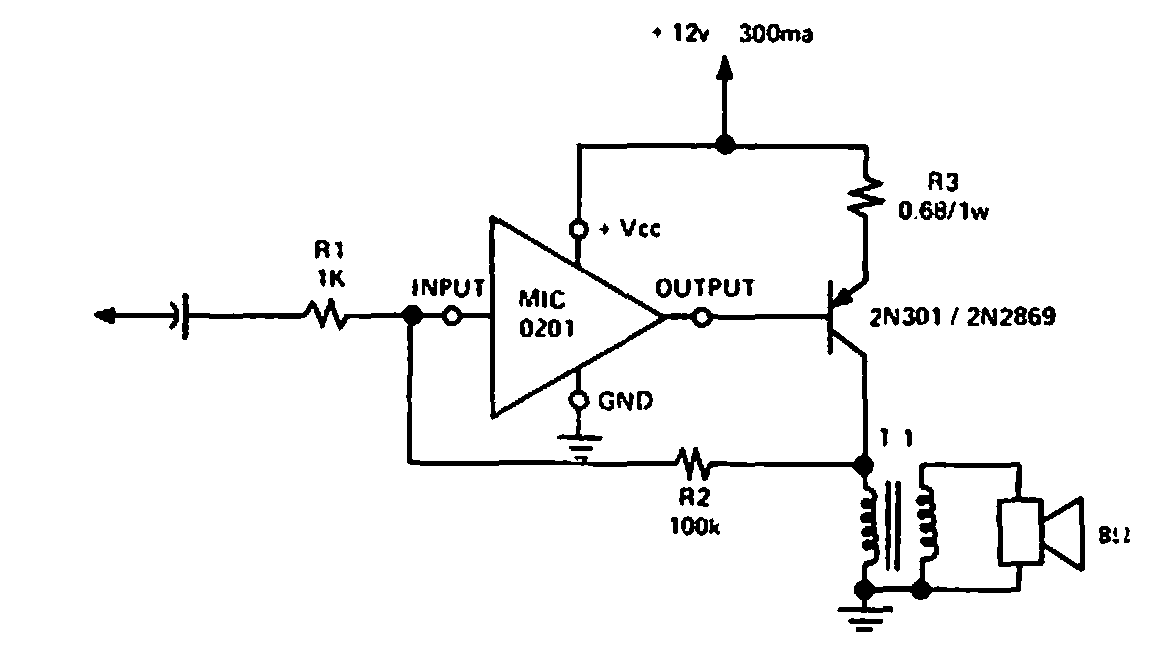

     Using a component of the era, this 1968 Mallory circuit uses an output transformer whose characteristics were not provided in the original documentation.
