FM preamplifier (CB6911E)

Details
Written by: Newton C. Braga

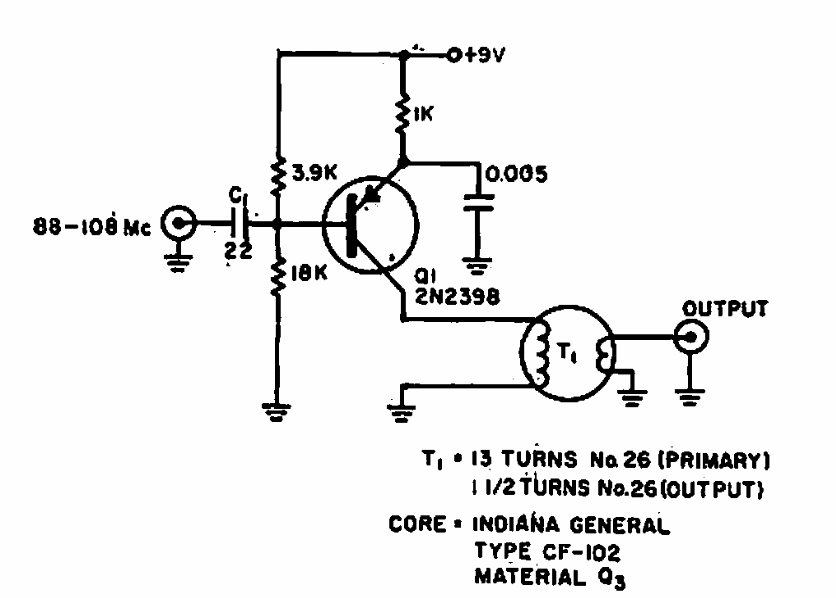

     Found in an Electronic Design of 1964, this circuit is intended to the signal amplification in the 88 to 108 MHz band. The transistor can be a modern equivalent.
