Binary to decimal decoder using transistors (CB6588E)

Details
Written by: Newton C. Braga

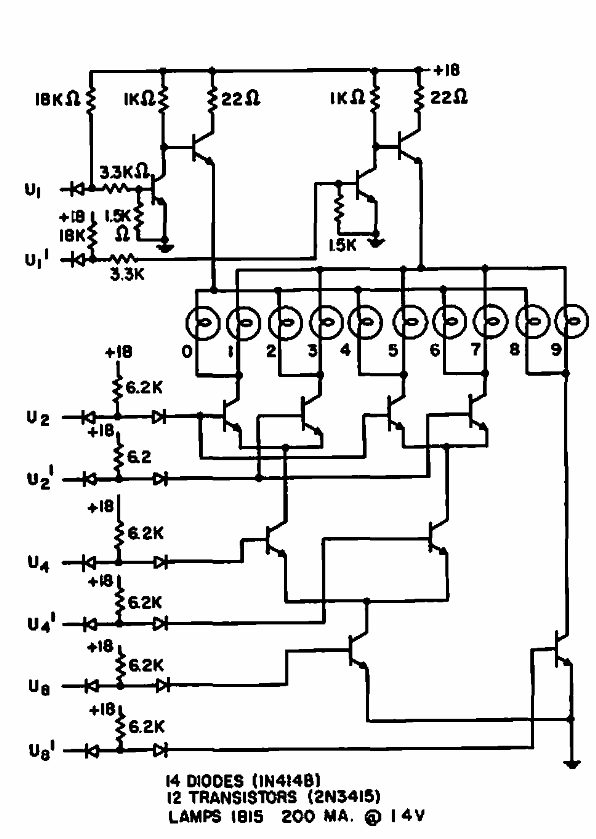

      We found this decoder in a 1966 General Electric publication. It makes use of general purpose light bulbs and transistors and can be adapted to use LEDs.
