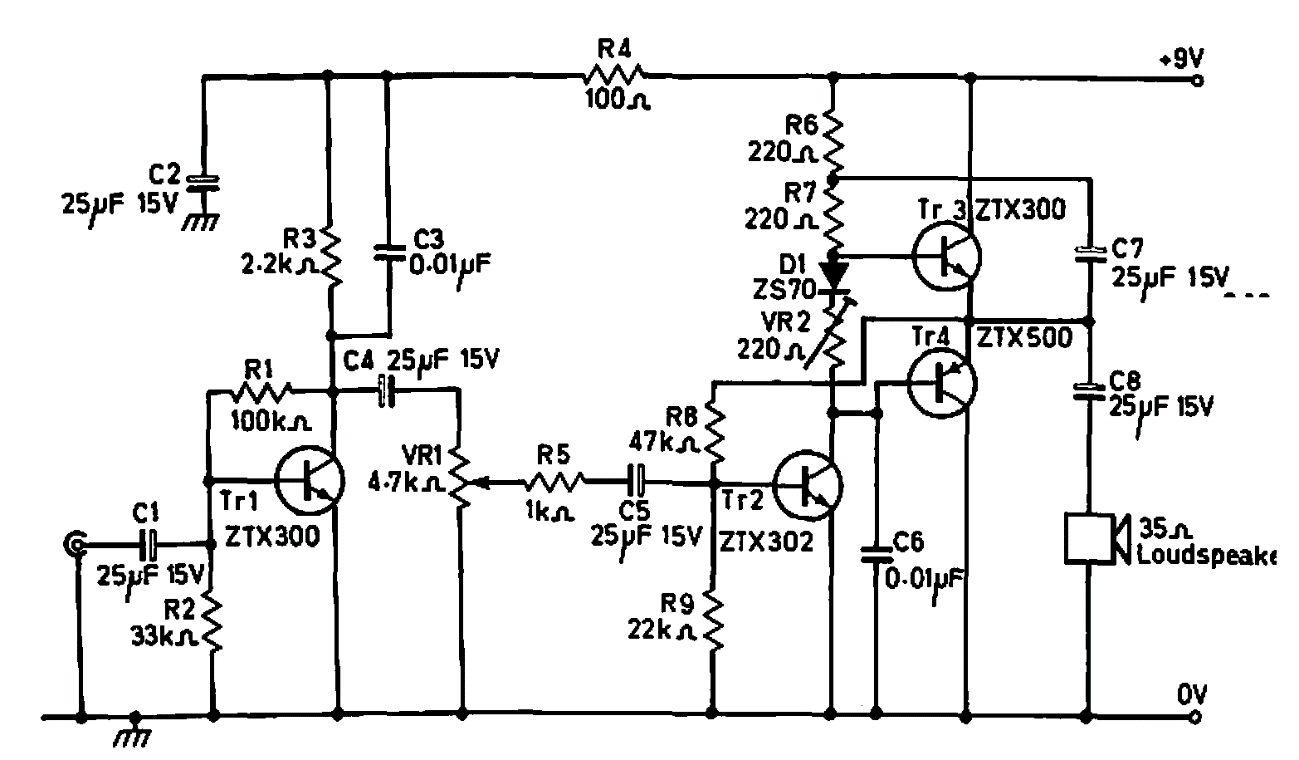

This circuit was found in a Ferranti documentation from 1969. The transistors are common types of the company at the time. Smaller equivalents may be used. The output power is of the order of 150 mW.
| Clique na imagem para ampliar |
Intercom Amplifier (CB6304E)
