Memory sensor amplifier (CB6809E)

Details
Written by: Newton C. Braga

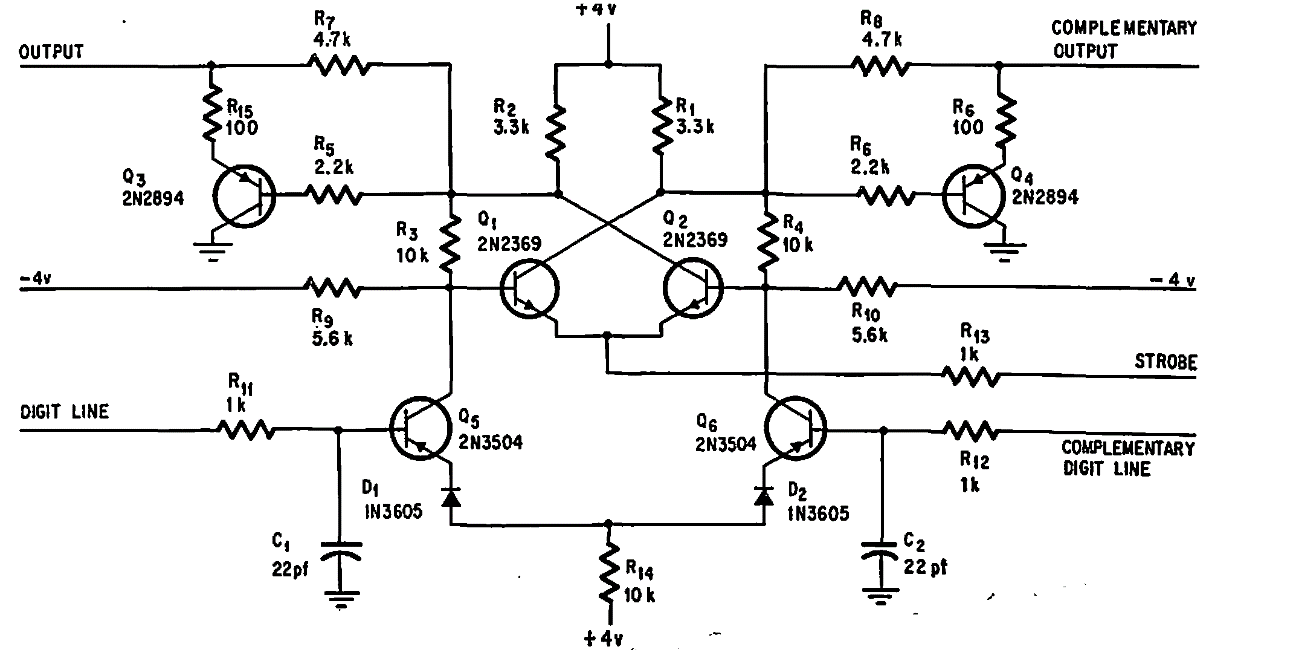

     This circuit is from a 1967 documentation. It consists of a sensor for memories used at the time. It can be made with modern equivalent transistors. Note the 4 V symmetrical power source.




| Clique na imagem para ampliar |
