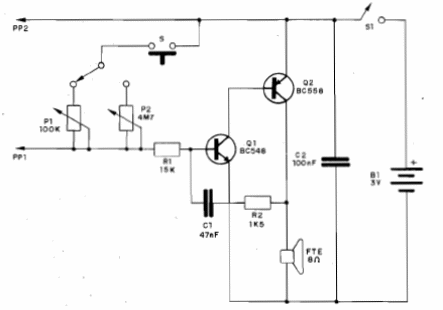

This resistance meter uses a two-transistor oscillator as basic configuration. The tone produced by the loudspeaker depends on C1 (fixed) and the resistor under test. As high is the tone lower is the resistance under test. Two AA or AAA cells can be used as power supply.
