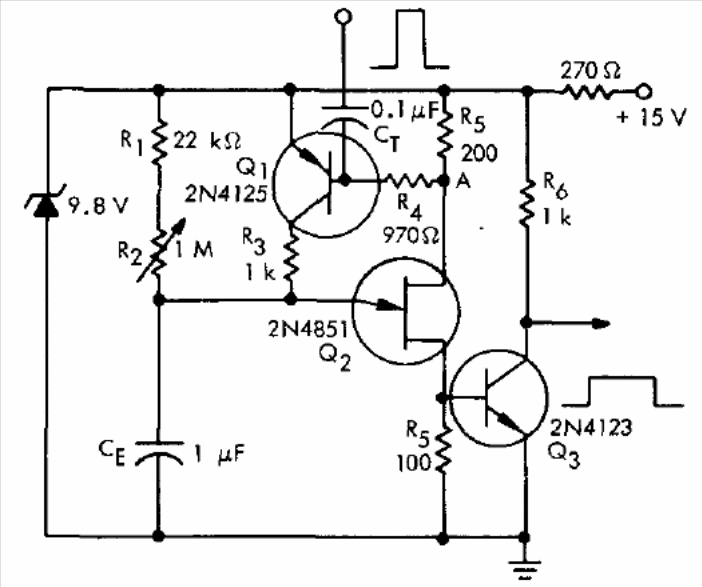

This circuit is from a 1974 publication by Motorola. The unijunction may be 2N2646 and bipolar BC558 and BC548. The pulse duration depends on the capacitor.
| Clique na imagem para ampliar |
Unijunction Monostable (CB13598E)
- Details
- Written by: Newton C. Braga
