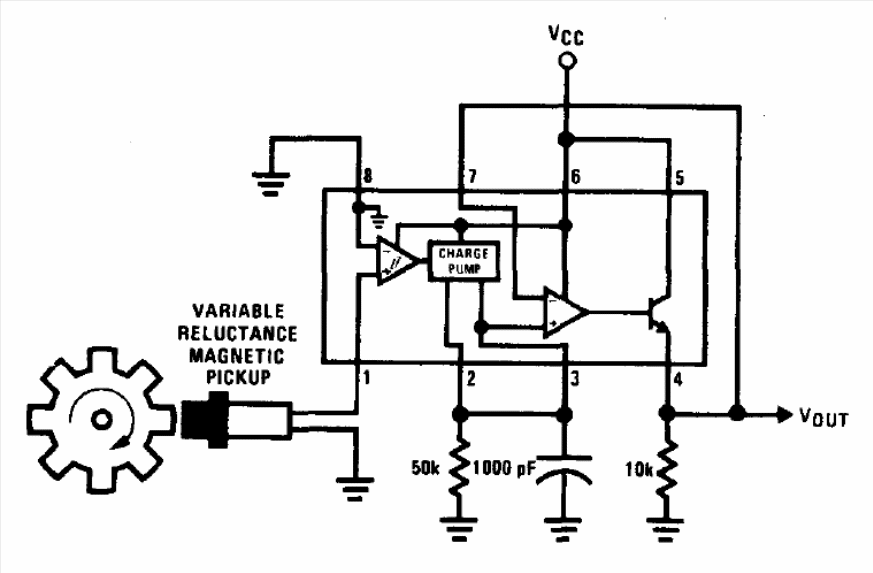

The integrated circuit used in this application is the National Semiconductor's LM2907, the configuration wave was obtained. The documentation is from 1978 and the sensor is of variable reluctance. The circuit output consists of rectangular pulses that can be used for TTL applications.
