Nicad Charger (CB13550E)

Details
Written by: Newton C. Braga

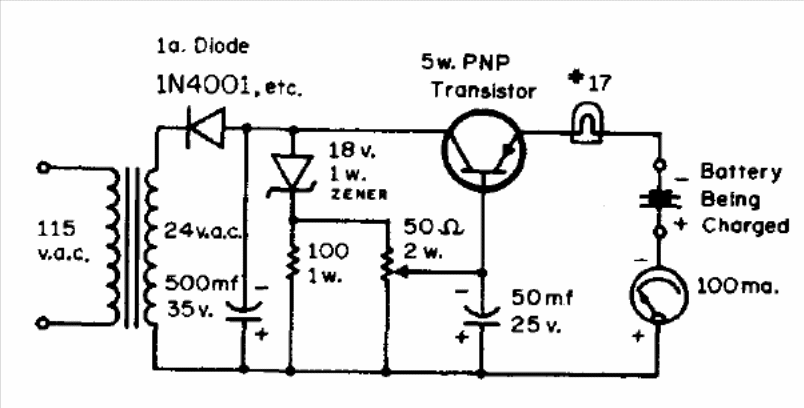

This circuit is from 1973 documentation. The transformer has 500 mA of current and the transistor can be the TIP32 mounted on a heat radiator.
