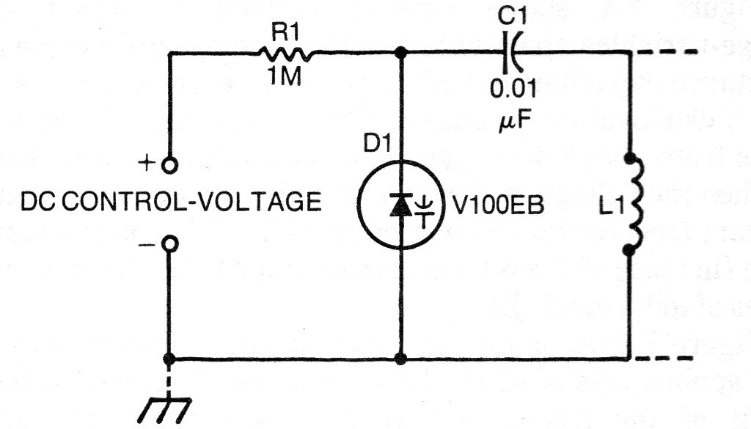

This configuration shows the simple way to use a varicap diode to tune an LC circuit. Capacitor C1 must be ceramic and the control voltage varies according to the characteristics of the varicap used. Common varicaps are those of the BB series like the BB809.
