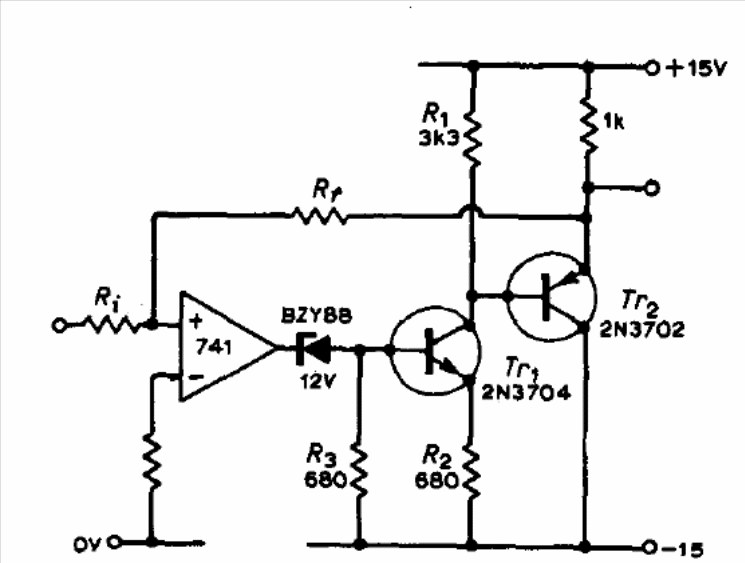

This circuit, from a 1973 publication, shows how to obtain a fast, low impedance output for a 741. TR1 can be a 2N2222 and TR2 a BD136. The circuit must be powered by a symmetrical source.
| Clique na imagem para ampliar |
741 Fast Low Impedance Amplifier (CB13538E)
- Details
- Written by: Newton C. Braga
