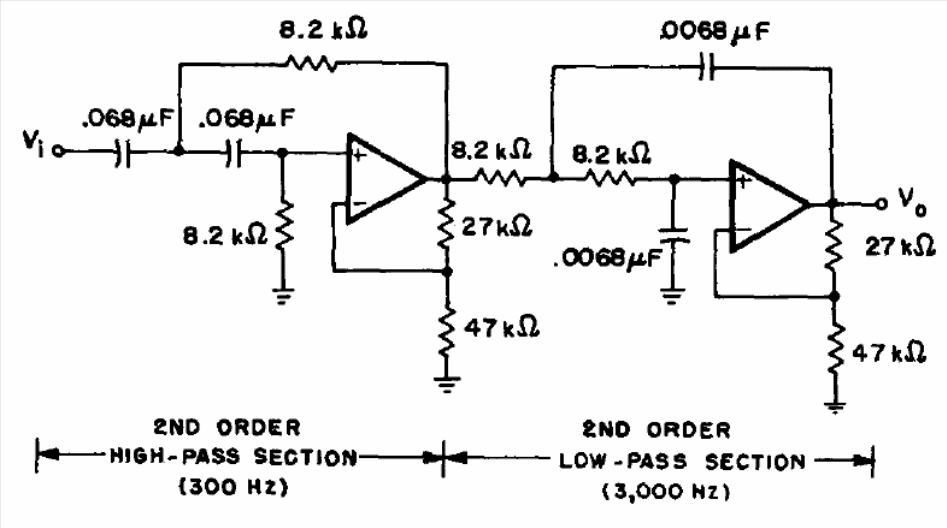

This filter rejects signals below 300 Hz and signals above 3000 Hz, being used in telecommunications systems. The circuit is from a 1977 publication and can use common operational amplifiers like the 741. The power supply must be symmetrical.
| Clique na imagem para ampliar |
