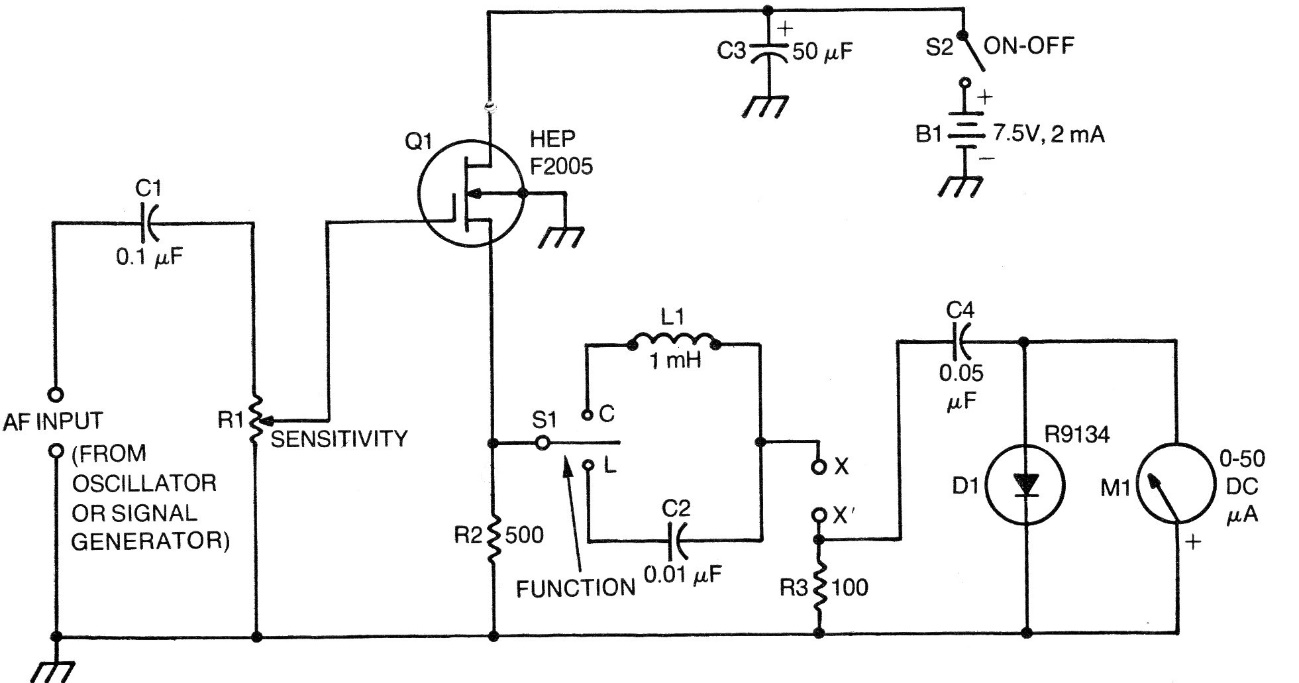

With the help of a signal generator, this circuit makes it possible to test inductors and capacitors and eventually, through comparison, determine their values. The circuit uses an indicator that may be the lowest current range of a multimeter. The MOSFET used can be a BF245 since the circuit is from old documentation in which the used component no longer exists. Power can also be supplied with a 9 V battery and consumption is very low.
