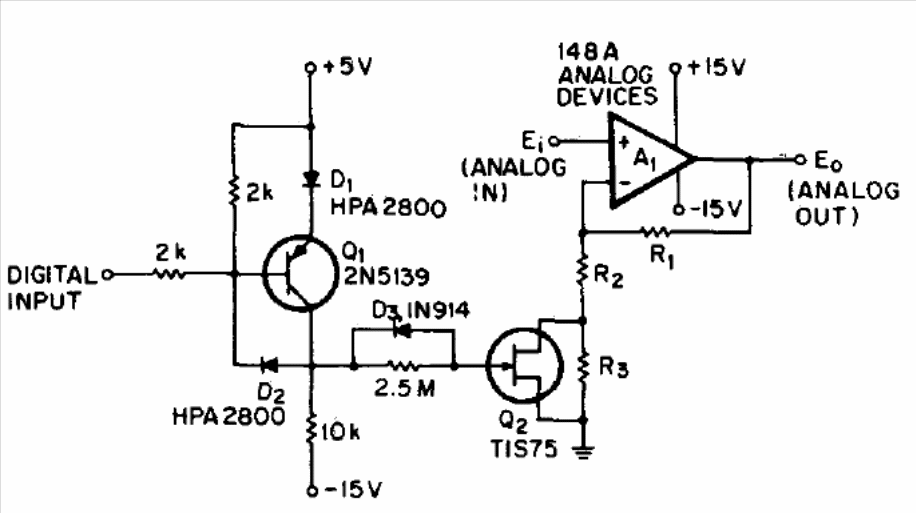

Programmable Gain Amplifier (CB13915E)

Details
Written by: Newton C. Braga



This circuit is from American documentation from 1970. It can be designed with a BC558 and for the operational, we can use equivalents. The FET can be the BF245.
