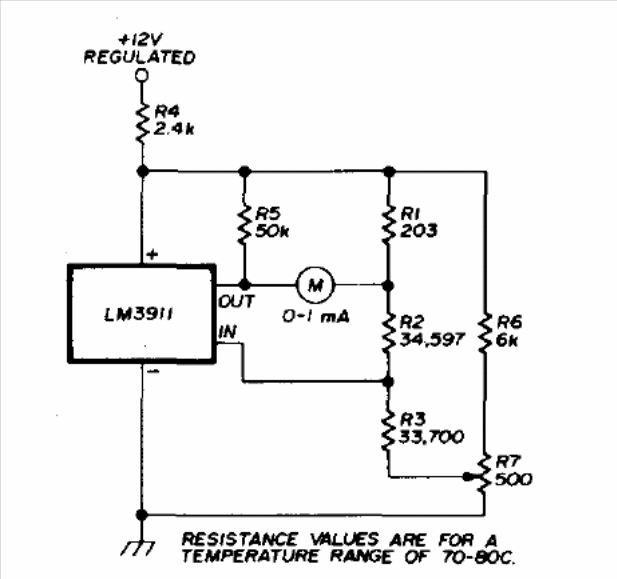

This circuit is from a 1977 National Semiconductor manual. The circuit directly indicates the temperature on a 0 to 1 mA instrument. The scale is in degrees Celsius from 70 to 80º C.
Thermometer LM3911 (CB13939E)
- Details
- Written by: Newton C. Braga
This circuit is from a 1977 National Semiconductor manual. The circuit directly indicates the temperature on a 0 to 1 mA instrument. The scale is in degrees Celsius from 70 to 80º C.
