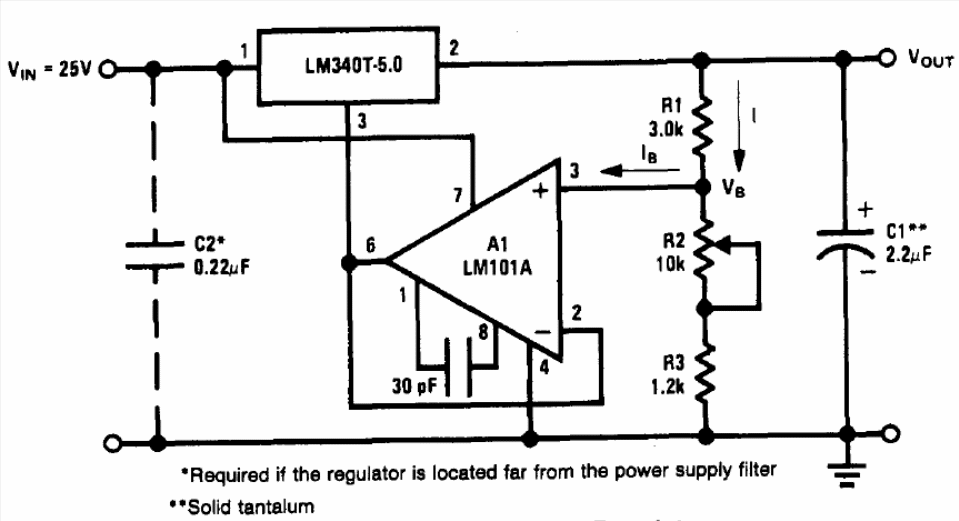

We found this circuit in the Linear Applications Handbook of the National Semiconductor of 1994. The amplifier admits equivalents and the LM340 must be mounted in a good heat sink. 5A is the maximum output current.
| Clique na imagem para ampliar |
Variable Power Source LM340 (CB14257E)
- Details
- Written by: Newton C. Braga
