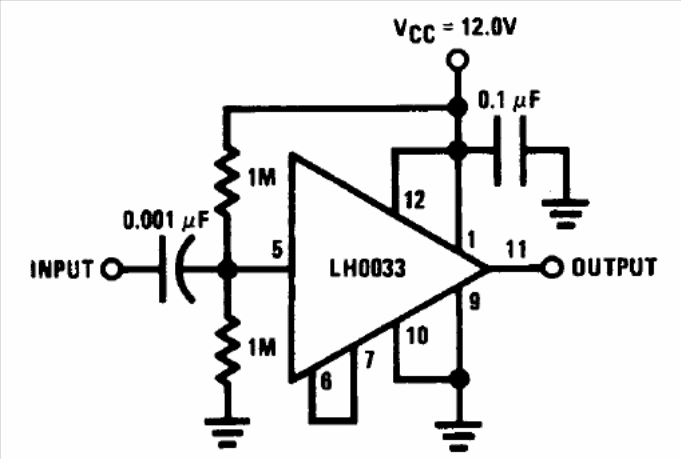

Single Supply High Speed Buffer (CB14336E)

Details
Written by: Newton C. Braga



The configuration is from the 1994 Linear Applications Handbook by National Semiconductor. The circuit is valid for the LH0033 and others in the same family.
