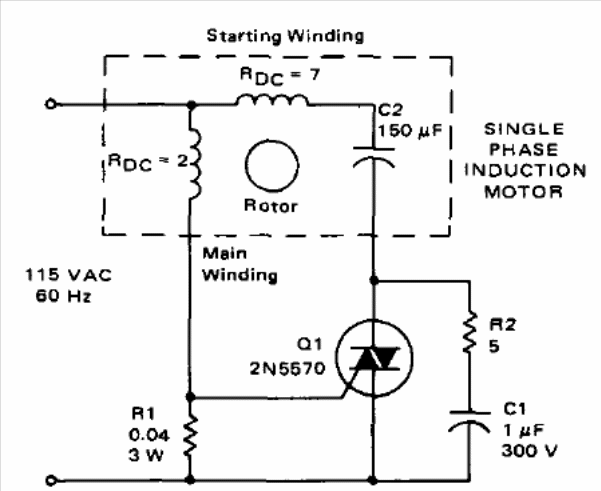

We found this circuit in Motorola's Circuit Applications for the Triac 1971 manual. The circuit is for ½ Hp engines that have a start winding. The triac can be an equivalent type of the TIC series.
Motor Starting Circuit (CB13803E)
