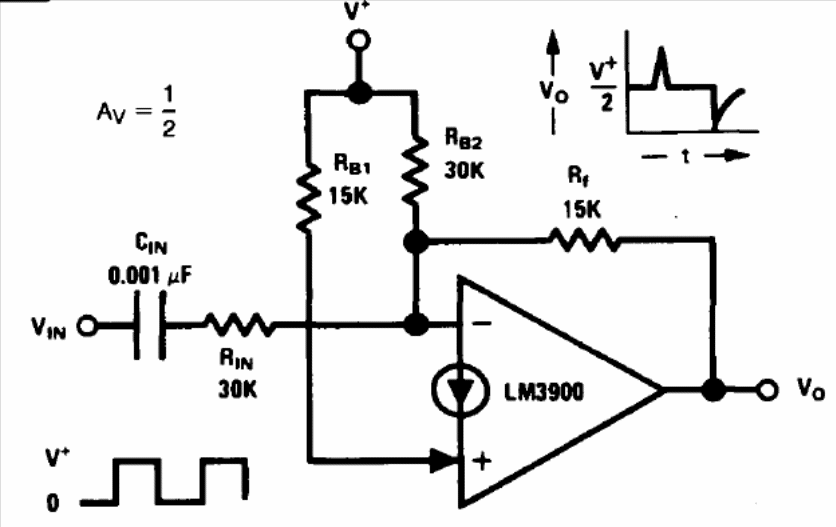

In the figure we have a differentiator with the LM3900 transconductance amplifier. The circuit is suggested by National Semiconductor in its Linear Applications Handbook. The power supply must be symmetrical.
| Clique na imagem para ampliar |
LM3900 Differentiator (CB14216E)
