We found this circuit in a 1975 filter cookbook. The circuit can use other operational amplifiers and components can be changed to other frequencies. The power supply must be symmetrical, and the Q factor is 3.2.
| Clique na imagem para ampliar |

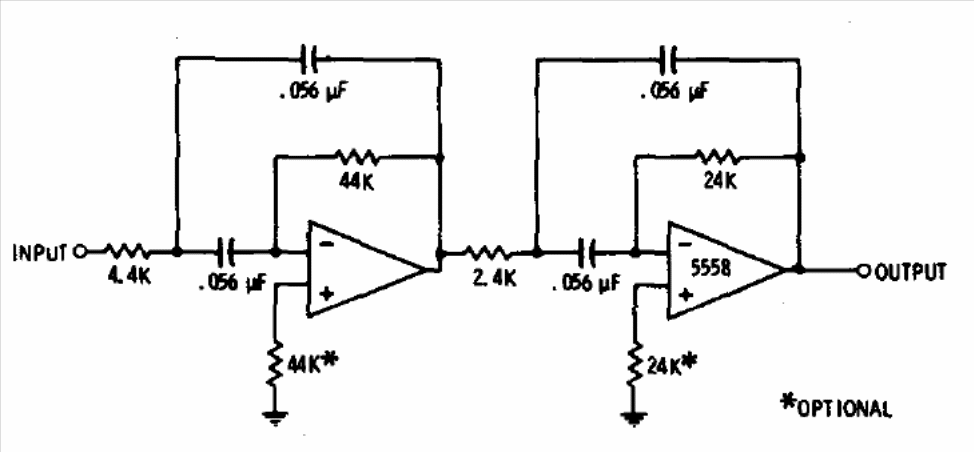

200 Hz to 400 Hz Band Pass Filter (CB13603E)
- Details
- Written by: Newton C. Braga
