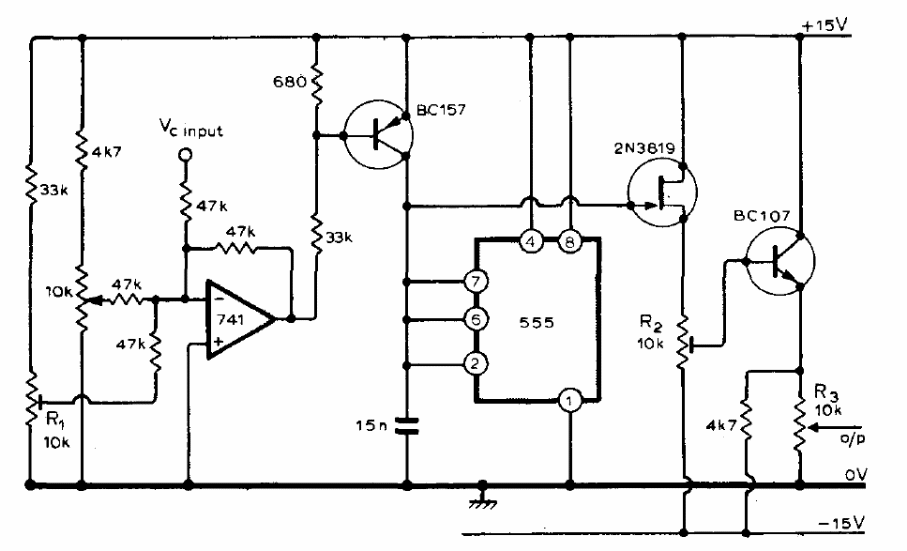

This circuit is from an English magazine from 1978. The circuit can be assembled with BC557, BC547 for bipolar and BF245 for FET. The circuit must be powered by a symmetrical source.
| Clique na imagem para ampliar |
0.2 to 20 kHz Voltage Ramp Controlled Oscillator (CB13932E)
- Details
- Written by: Newton C. Braga
