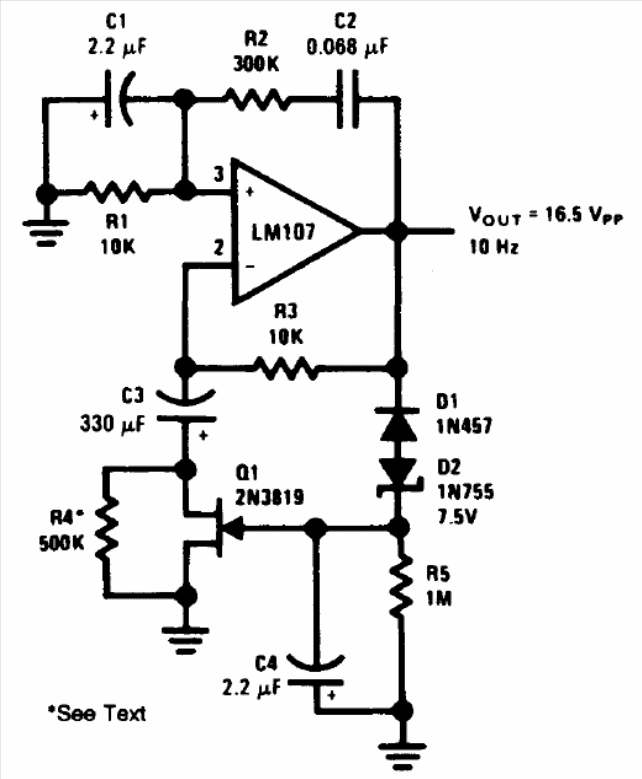

This sinusoidal oscillator is from the 1994 National Semiconductor Linear Applications Manual but can be implemented with modern operational. The source must be symmetrical and C3 determines the frequency, which can be changed.
| Clique na imagem para ampliar |
