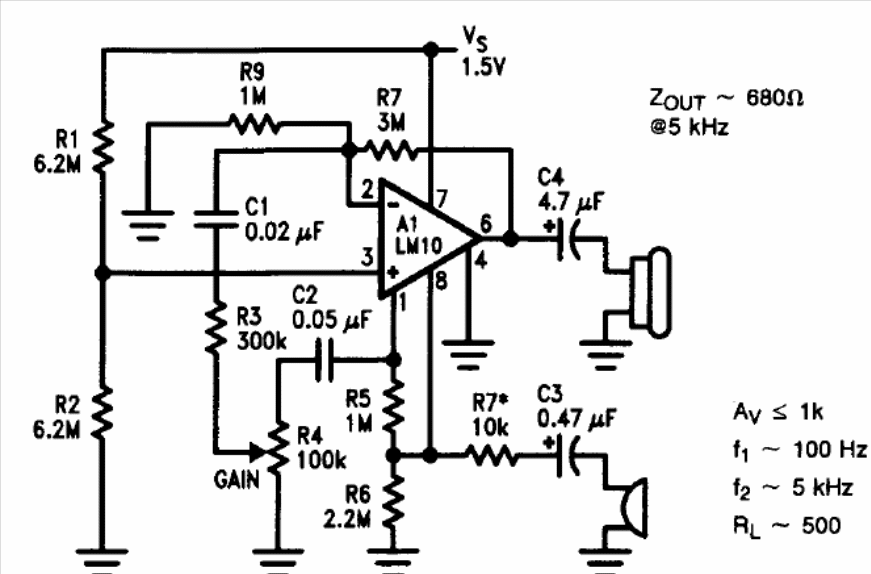

This circuit can serve as the basis for a simple phone. The LM10 is not common today, but the circuit can be adapted to use a modern equivalent. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
