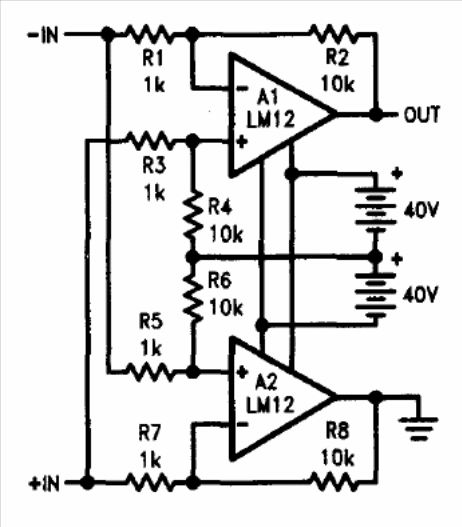

Bridge Power Amplifier with the LM12 (CB14394E)

This configuration shows how to use two National Semiconductor 4 A amplifiers bridged. The circuit is from the 1994 Linear Applications Handbook.
