65 V x 1 A power supply LM143 (CB14273E)

Details
Written by: Newton C. Braga

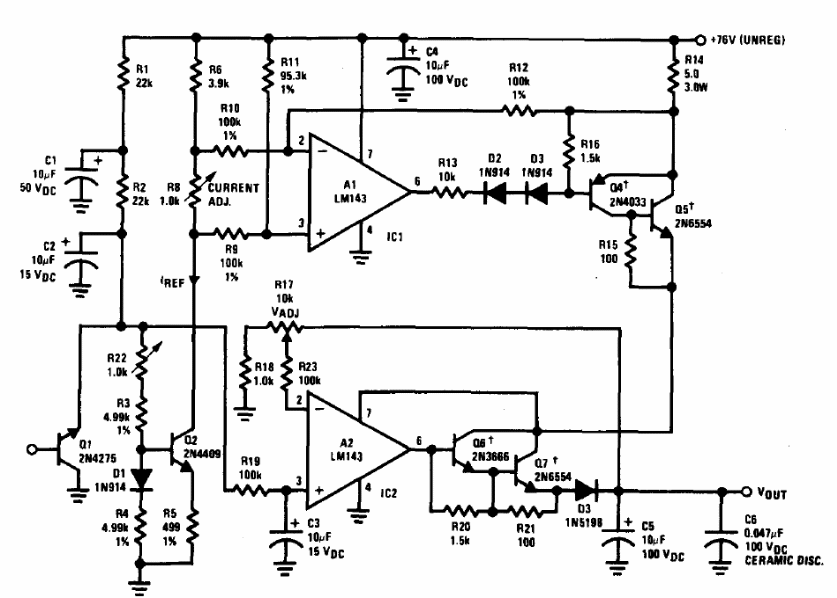

The LM143 is a high voltage operational amplifier not very easy to obtain today. The transistors used are also uncommon. The circuit is from National Semiconductor's Linear Applications Handbook published in 1994.




| Clique na imagem para ampliar |
