Inverted Astable 555 (CB13820E)

Details
Written by: Newton C. Braga

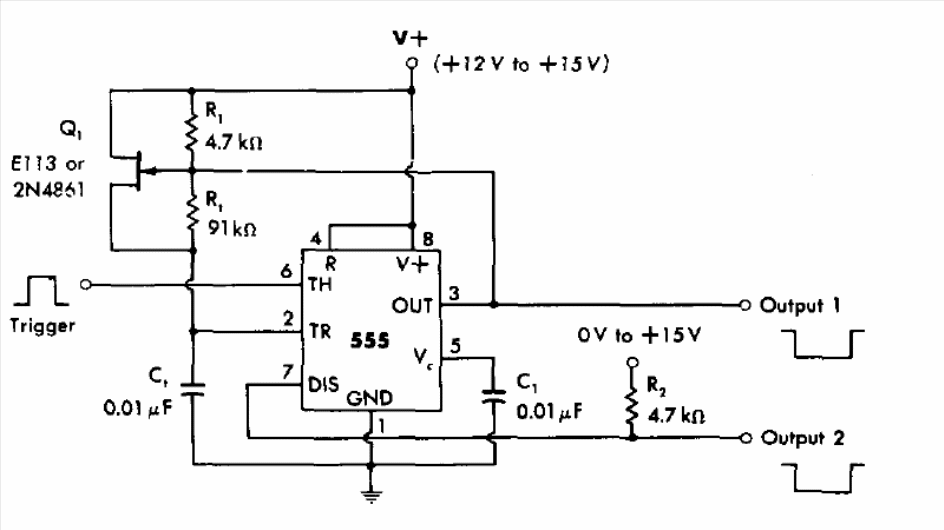

This circuit was found in a 1977 timer cookbook. The circuit can generate signals with up to 99% active cycle. The FET can be BF245 or MPF102 and the basic frequency given by R1, R2 and C1.




| Clique na imagem para ampliar |
