Peak Detector (CB14074E)

Details
Written by: Newton C. Braga

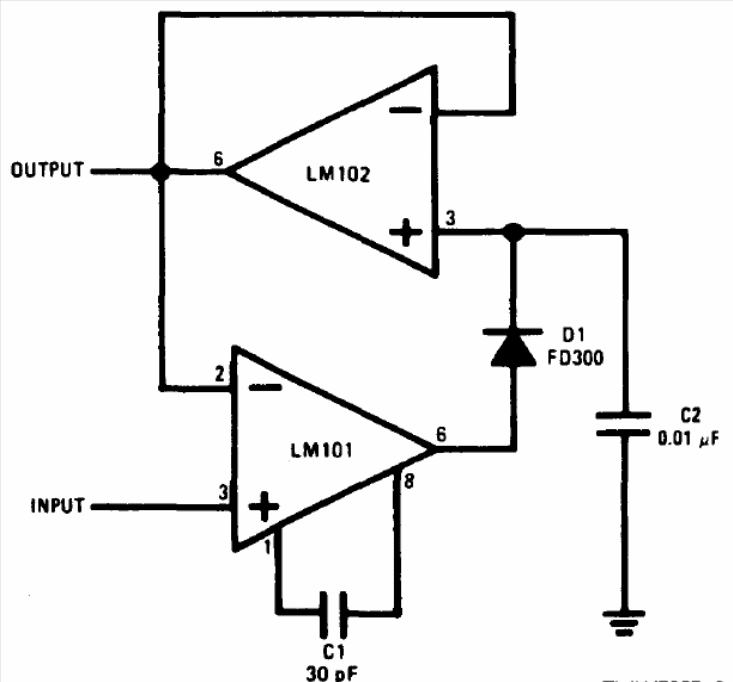

This circuit is from the National Semiconductor's Linear Applications Handbook of 1994. The circuit can be implemented with equivalent operational. The detected voltage is given by the diode.
