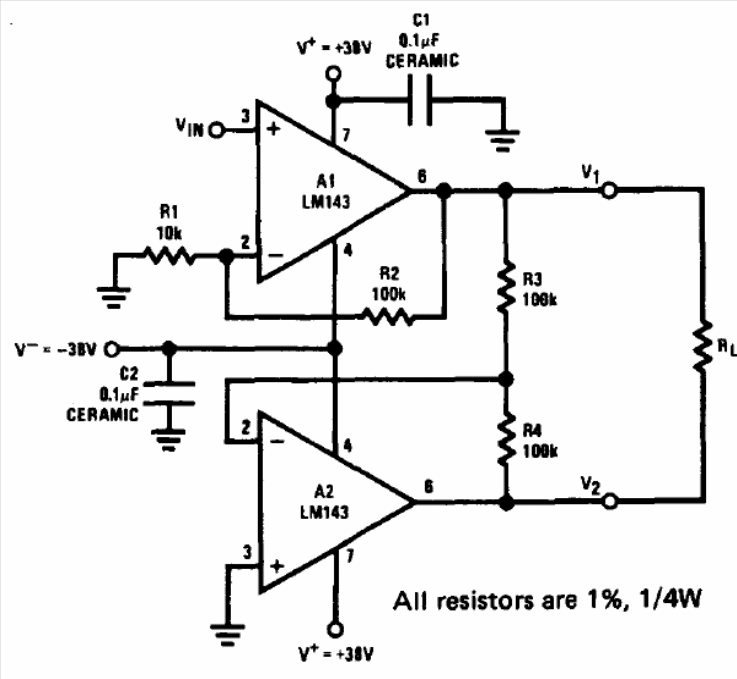

This 130 V drive uses an integrated circuit not very easy to find, which is the LM143. The circuit is suggested by National Semiconductor in its 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
High Voltage Drive LM143 (CB14269E)
