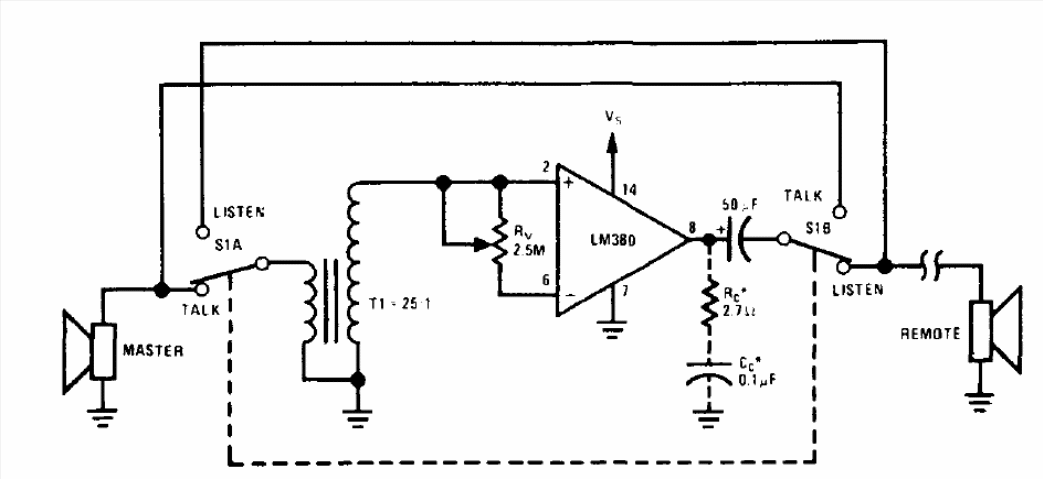

This circuit was obtained in the Audio Handbook of the National Semiconductor of 1977. The components Rc and Cc are recommended for greater stability. The transformer used can be any type of transistor radio output. The remote station must not be more than 20 meters away. The supply voltage can be between 8 and 20 V.
| Clique na imagem para ampliar |
