Quadrature Oscillator (CB14044E)

Details
Written by: Newton C. Braga

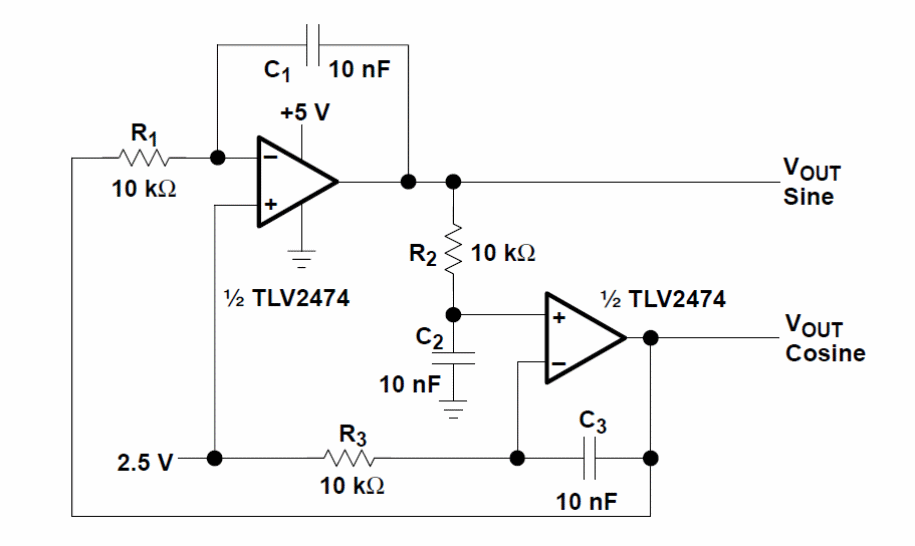

We found this approximately 1.5 kHz oscillator in Texas Instruments technical documentation. The signal generated is sinusoidal and the components can be changed to obtain other frequencies. The circuit has sine and cosine outputs.




| Clique na imagem para ampliar |
