Low Noise Pre Amplifier (CB13682E)

Details
Written by: Newton C. Braga

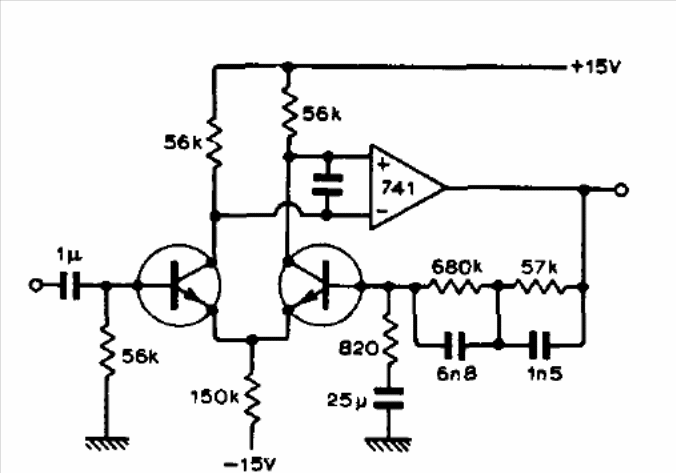

The power supply for this 1972 circuit must be symmetrical and the BC549 transistors. Care with the layout is important to avoid capturing tinnitus.
