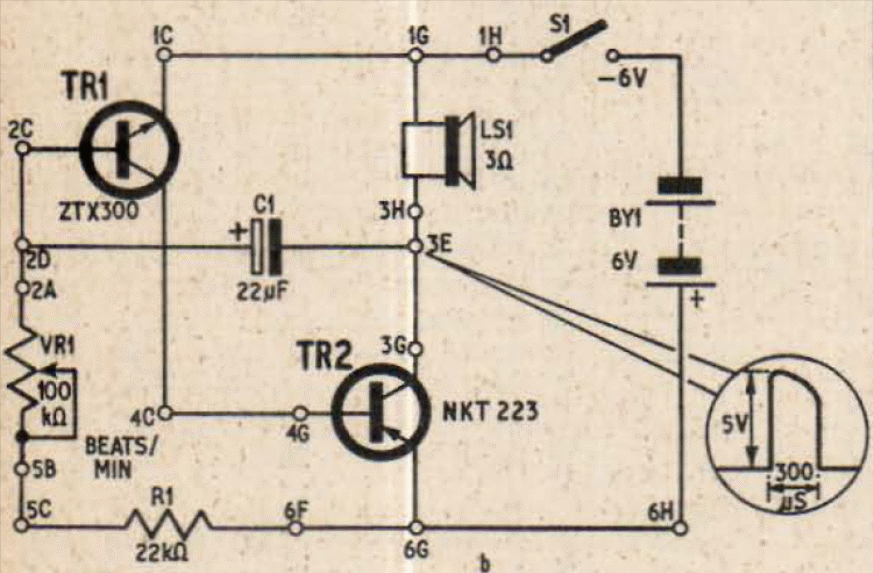

The circuit is from an English publication from 1970, but it can be assembled with more modern transistors such as BC548 and BC558 and the power supply is made with voltages from 3 to 6 V. The speaker can be 4 or 8 ohms.
| Clique na imagem para ampliar |
