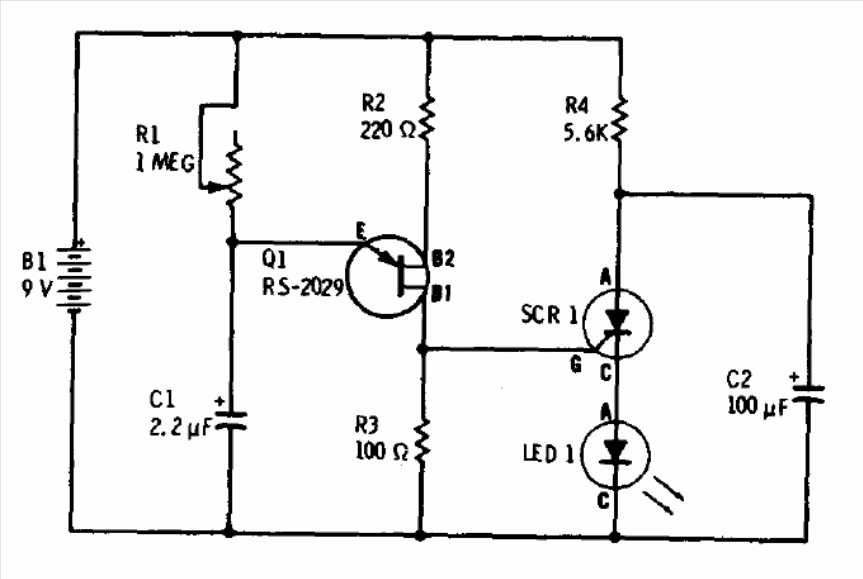

This interesting experimental and didactic configuration was found in a 1977 Radio Shack documentation. The circuit can use a 2N2646 for the unijunction and a TIC106 for the SCR. The supply can be done with voltages from 9 to 15 V.
